KKK-A-1822 E
R

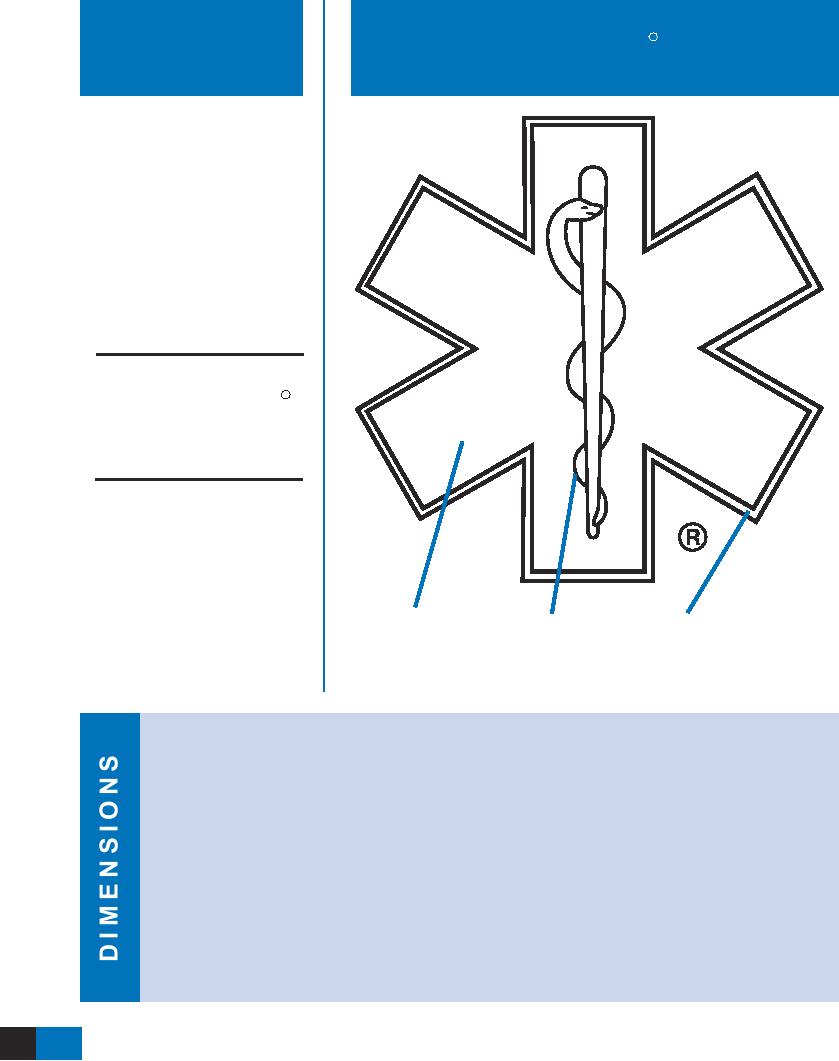

Figure 4
"Star of Life" Symbol
THE "STAR OF LIFE" IS
A SIX-BARRED CROSS
UPON WHICH IS SUPER-
IMPOSED THE STAFF OF
AESCULAPIUS (es'cu-
la'pi-us) WHO, IN BOTH
GREEK AND ROMAN
MYTHOLOGY, WAS THE
GOD OF MEDICINE AND
HEALING.
NOTE:
THE STAR OF LIFE SYMBOL IS
R
A REGISTERED TRADEMARK
OF THE U.S. DEPARTMENT OF
TRANSPORTATION
Blue
White
White Border
Dimensions (min.):
Size A
Size B
Size C
Size D
Length of Bar
76 mm (3")
30.5 cm (12")
40.6 cm (16")
81.3 cm (32")
Width of Bar
19 mm (.75")
76 mm (3")
10.2 cm (4")
20.3 cm (8")
Length of staff
63 mm (2.5")
24.1 cm (9.5")
31.7 cm (12.5")
63.5 cm (25")
White border
2.4mm (0.09")
9.5mm (0.375")
12.7mm (0.5")
-
All angles 60o
Deviations must be proportionate
